Name: Guitar Pedal Patch Cable | WBC-PRO-PEDAL MINI-BOLT
Availability: InStock

WBC-PRO-PEDAL + WBC MINI BOLT

A Pedal Cable Engineered As A Complete System.

Ultra-low capacitance cable. Dual-layer noise control. A compact, precision-machined nickel-plated MINI BOLT connector. One purpose: preserve the signal while taking up less of your pedalboard.

Cable + connector engineered in-house
Choose Your Lengths ↑

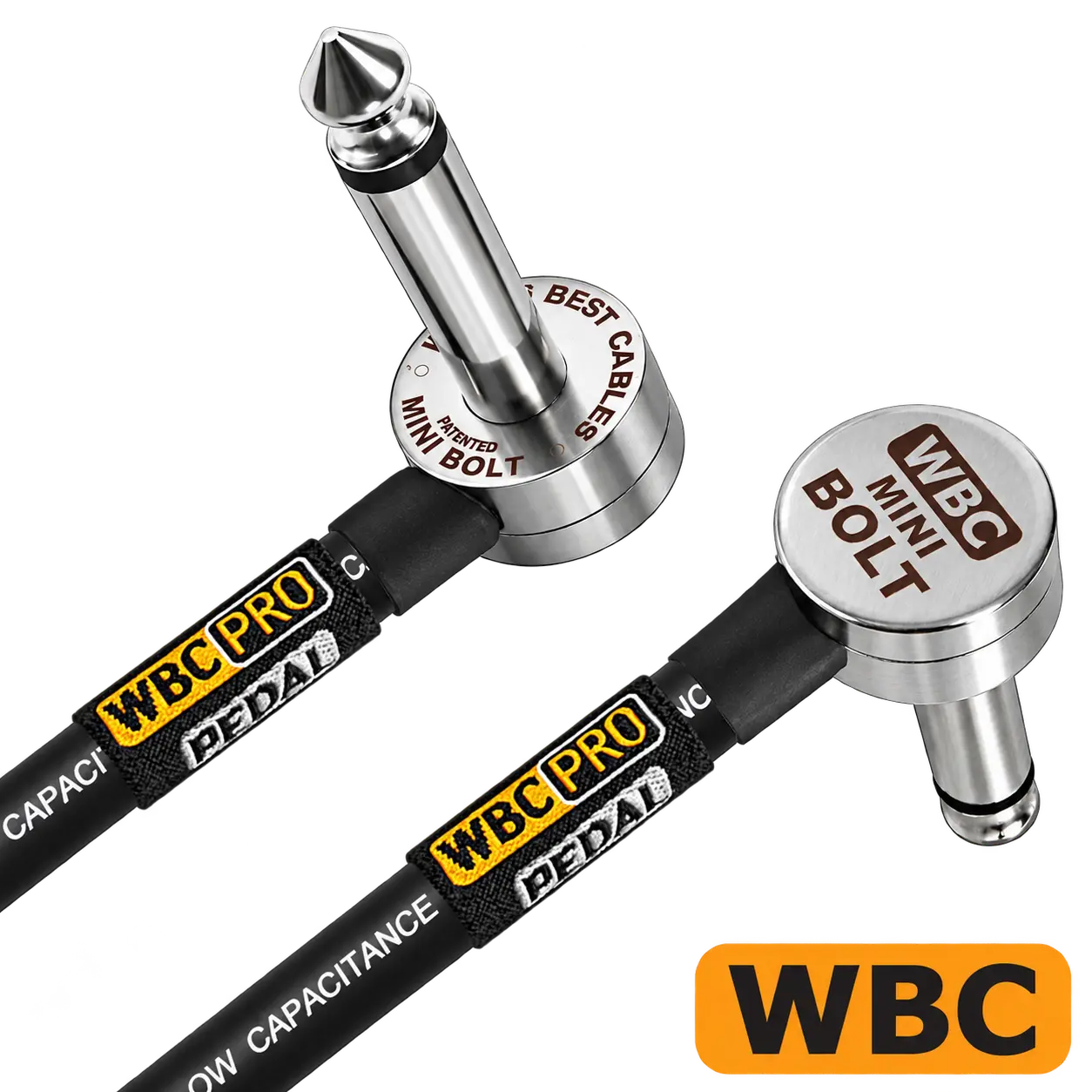

WBC-PRO-PEDAL cable with nickel-plated WBC MINI BOLT TS connectors

10Year WarrantyLong-term replacement coverage from WBC.

WBuilt By WBCProfessionally assembled with controlled termination processes.

✓Engineered In-HouseCable and connector designed to work as a system.

↗Worldwide ShippingDirect from Worlds Best Cables.

A patch cable may be short. A pedalboard may use a lot of them. That is exactly why cable design still matters.

WHY CAPACITANCE MATTERS

Keep More Of The Signal You Started With.

A passive guitar pickup is a relatively high-impedance source. Cable capacitance becomes part of that electrical system, interacting with the pickup and controls and influencing the instrument’s resonant response. As total capacitance rises, the audible result can be a greater change in high-frequency presence and response.

WBC-PRO-PEDAL is engineered at 18 pF/ft, keeping the cable contribution exceptionally low. That matters most in passive and unbuffered signal paths, where every cable segment before a low-impedance buffer contributes to the load seen by the instrument.

The goal is not to “add tone.” It is the opposite: change as little as practical.

Technical note: Once a signal is driven by a good low-impedance buffer or active output, cable capacitance is far less influential. Low capacitance is especially valuable where passive pickups feed true-bypass or otherwise unbuffered cable runs.

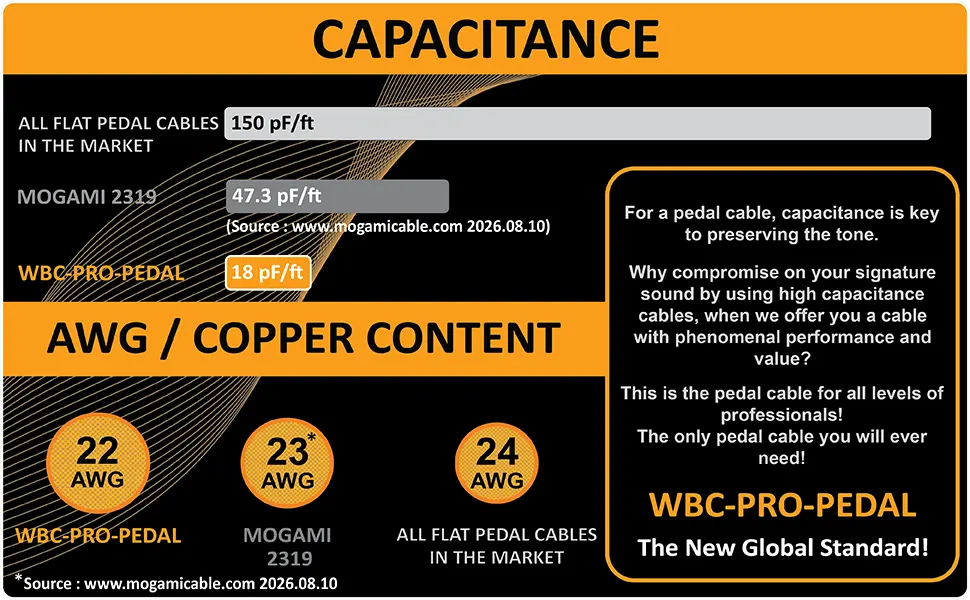

WBC-PRO-PEDAL 18 pF per foot capacitance comparison graphic — WBC-PRO-PEDAL: 18 pF/ft. Mogami publishes 47.3 pF/ft for W2319 at 1 kHz, 20°C.

18pF/ft capacitance

22AWG conductor

98%Spiral shield coverage

99.99%OFC conductor / shield

WBC-PRO-PEDAL

Dual Shielding. Without The Bulk.

Low capacitance is only useful if the cable can survive a real pedalboard. WBC-PRO-PEDAL combines a fine-stranded 22 AWG oxygen-free copper core with a dense spiral shield, a conductive graphite-based layer and an ultra-flexible, UV-protected outer jacket.

The result is a cable designed to route cleanly through compact boards while providing strong electrostatic and RF noise rejection and controlling the handling noise that can occur when cable materials flex and rub against one another.

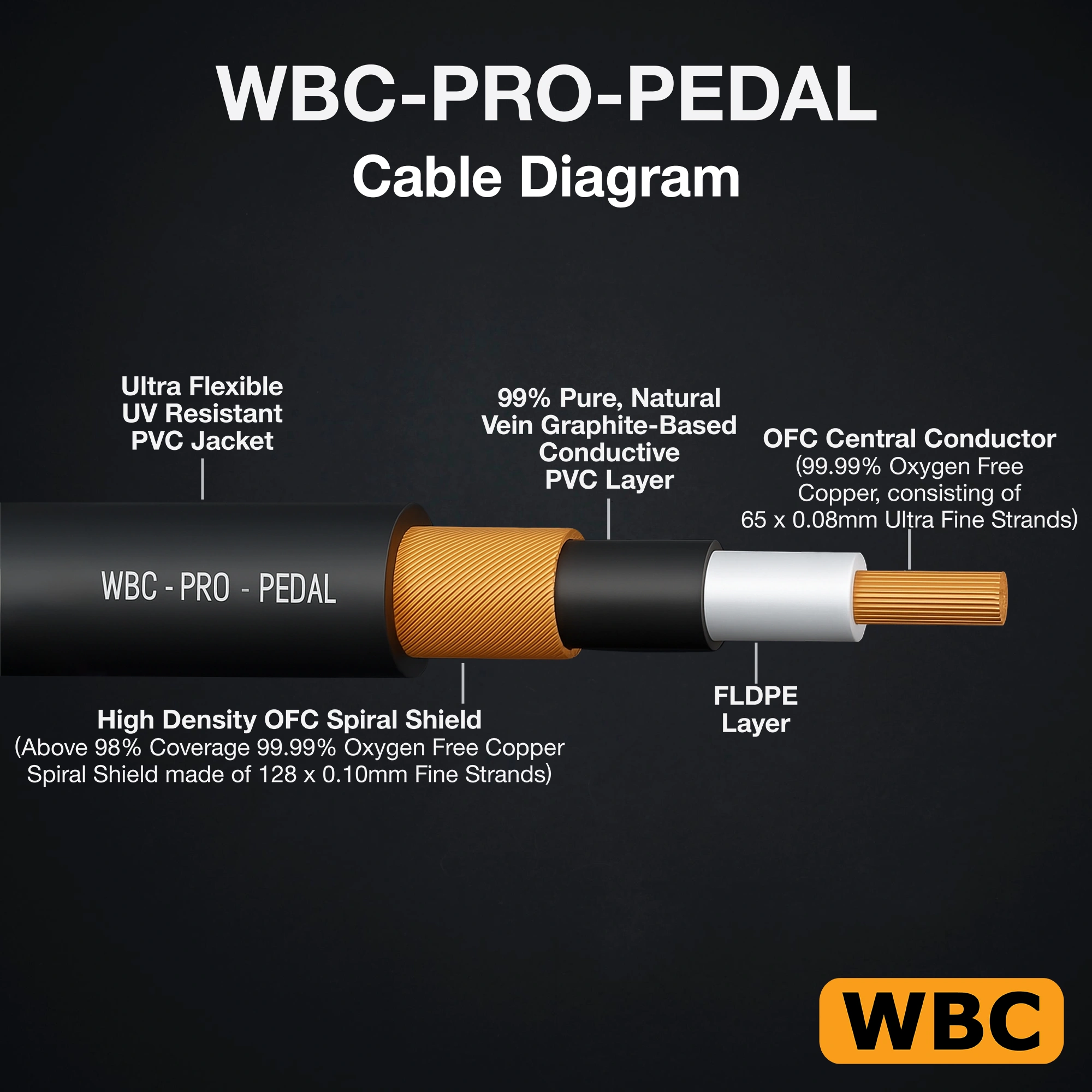

Ultra-Flexible JacketRoutes easily between tightly packed pedals and survives repeated setup, teardown and repositioning.

98% OFC Spiral ShieldDense copper coverage helps reject unwanted interference while preserving flexibility.

Graphite Conductive LayerA conductive PVC layer formulated with high-purity natural-vein graphite helps drain electrostatic charge and reduce triboelectric handling noise.

65-Strand 22 AWG CoreFine-stranded 99.99% OFC construction combines a substantial conductor with the flexibility needed on a pedalboard.

WBC-PRO-PEDAL 18 pF per foot ultra-low capacitance

WBC-PRO-PEDAL dual shielded and ultra-flexible cable

WBC-PRO-PEDAL natural vein graphite conductive PVC layer

WBC MINI BOLT — NICKEL-PLATED

Small Connector. Serious Engineering.

MINI BOLT was developed around a simple idea: a pedal connector should occupy as little valuable board space as possible without turning the plug itself into the weak link.

Its ultra-compact geometry uses a stainless-steel outer body for mechanical strength while keeping brass in the electrical connectivity path. The tip and internal connectivity section are precision-machined from brass as an integrated design, reducing unnecessary interfaces and improving mechanical robustness.

The nickel-plated MINI BOLT is CNC-machined and hand-finished for a compact, durable connector intended for years of real use.

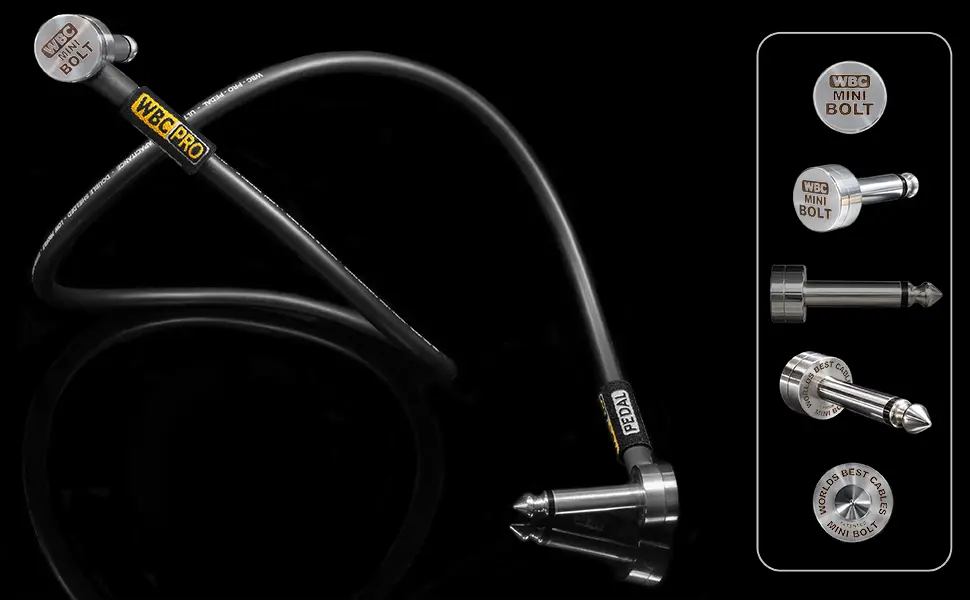

WBC-PRO-PEDAL cable and nickel-plated WBC MINI BOLT connector views

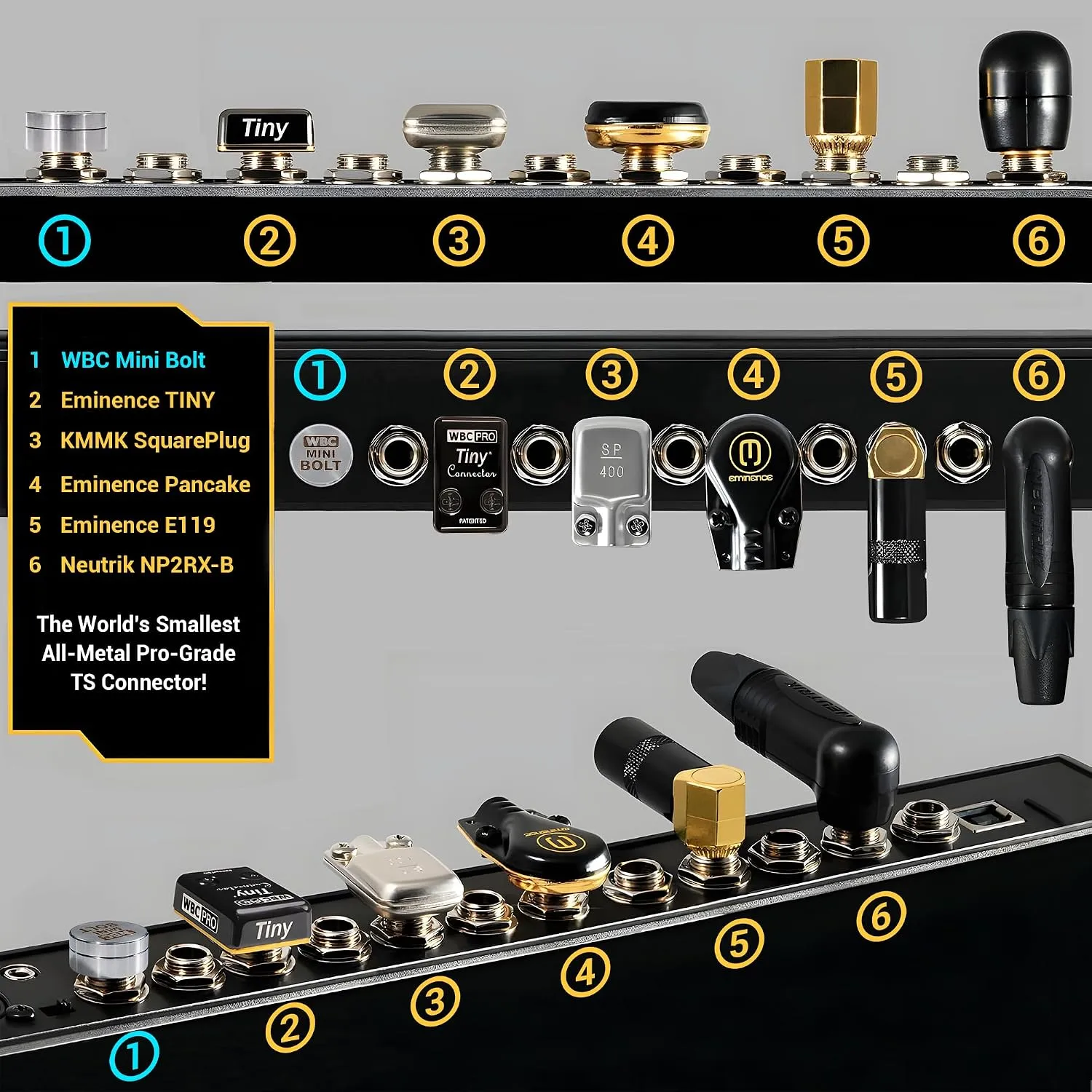

PEDALBOARD REAL ESTATE

More Room For Pedals. Less Room Wasted On Plugs.

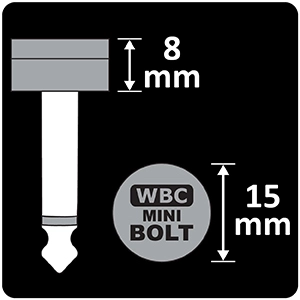

A connector that projects too far from the jack forces pedals farther apart. MINI BOLT keeps the body extremely compact: the supplied dimensional reference shows an approximately 15 mm body diameter with an 8 mm low-profile head.

That compact geometry can reduce the gap required between pedals and can also make the connector practical in locations where a conventional right-angle plug is simply too bulky.

WHY MINI BOLT?

See Where The Space Went.

MINI BOLT is not merely a smaller shell around a conventional pedal plug. Its internal construction was rethought around size, mechanical durability and an all-brass electrical path.

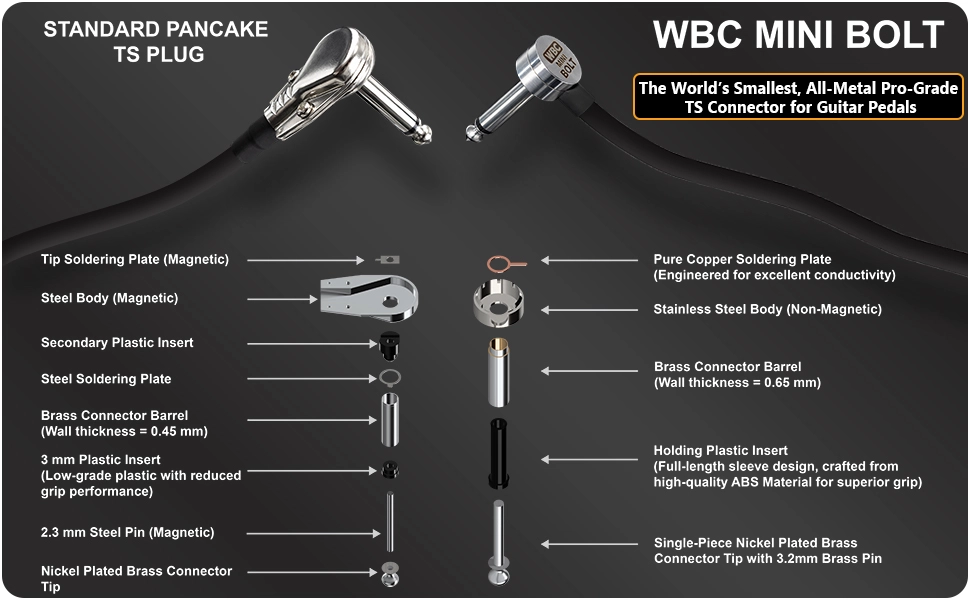

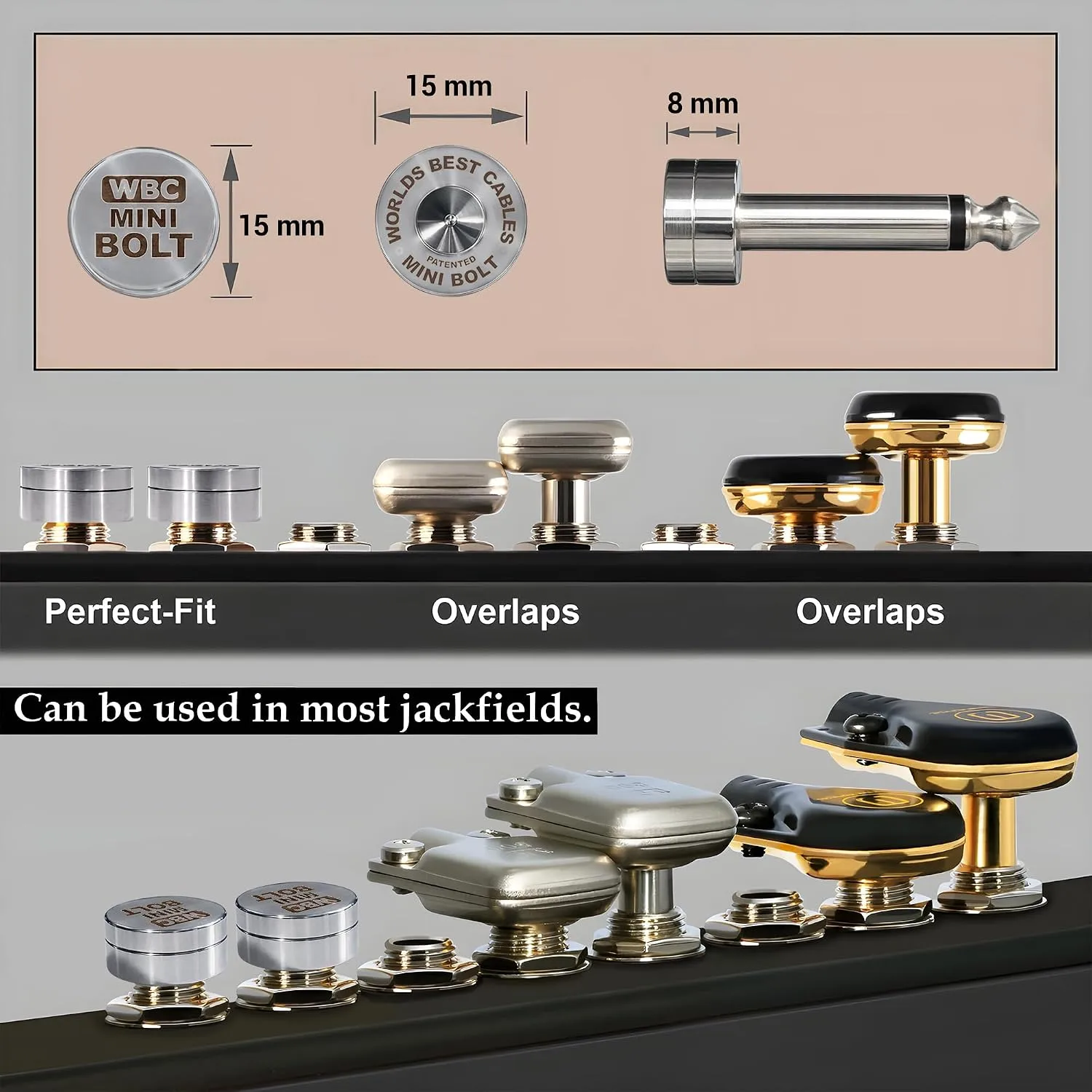

WBC MINI BOLT construction compared with a conventional pancake TS plug

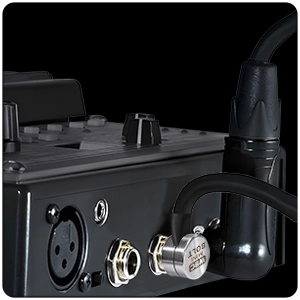

WBC MINI BOLT fitting into a compact audio equipment jack area

VERSATILITY IS THE POINT

Right-Angle Routing. Straight-Plug Territory.

MINI BOLT’s extremely small head allows it to work in many tight jack layouts where larger right-angle plugs interfere with neighboring connectors or surrounding hardware.

The result is a connector that can solve layouts normally associated with straight plugs while still routing the cable away from the jack at a pedalboard-friendly angle.

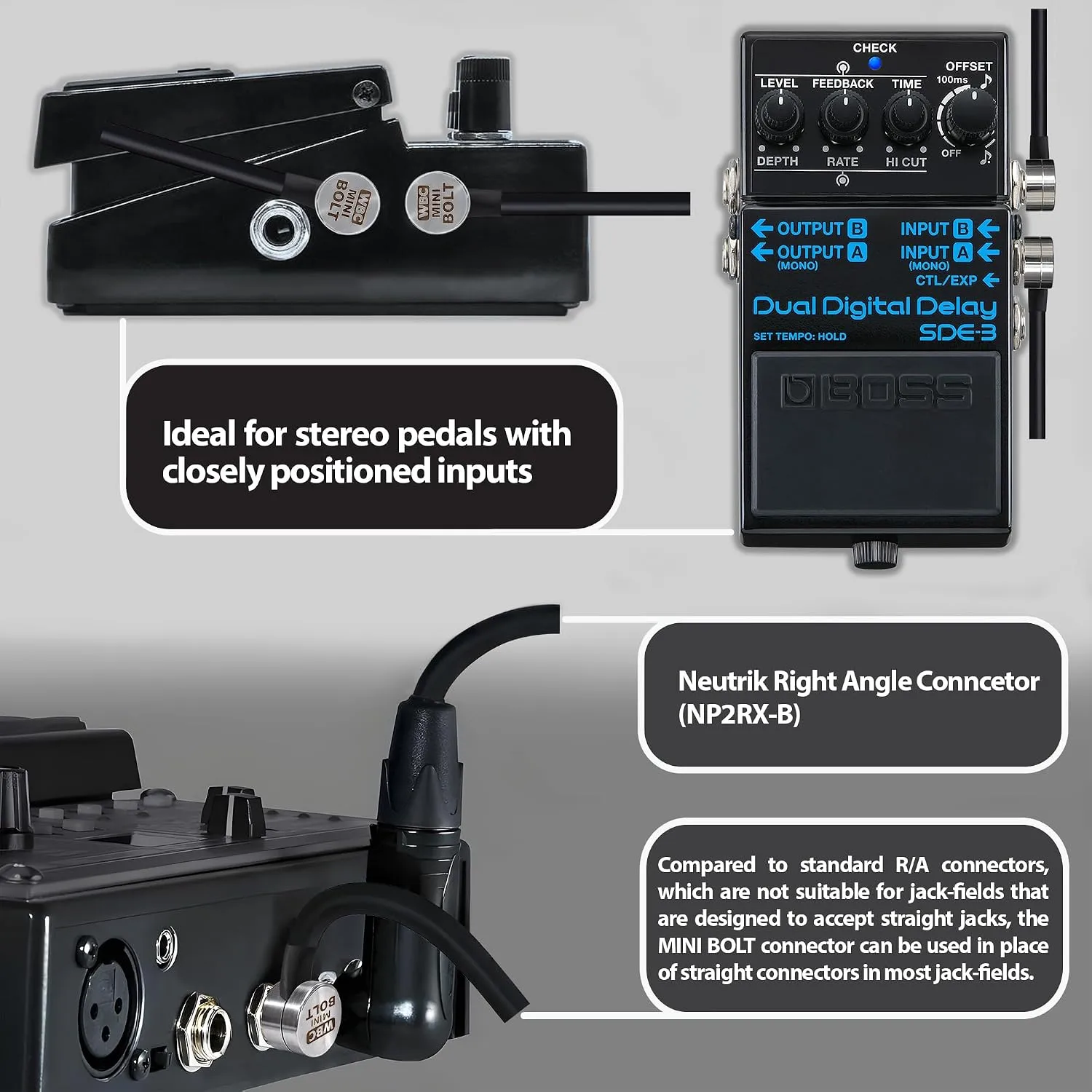

CLOSELY SPACED JACKS

Stereo Pedals Shouldn’t Force A Connector Compromise.

Closely positioned input and output sockets are common on compact and stereo pedals. MINI BOLT’s small footprint is designed to let adjacent plugs coexist without the bulky overlap associated with many conventional pancake-style connectors.

Choose Your Lengths ↑

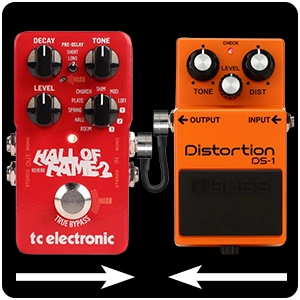

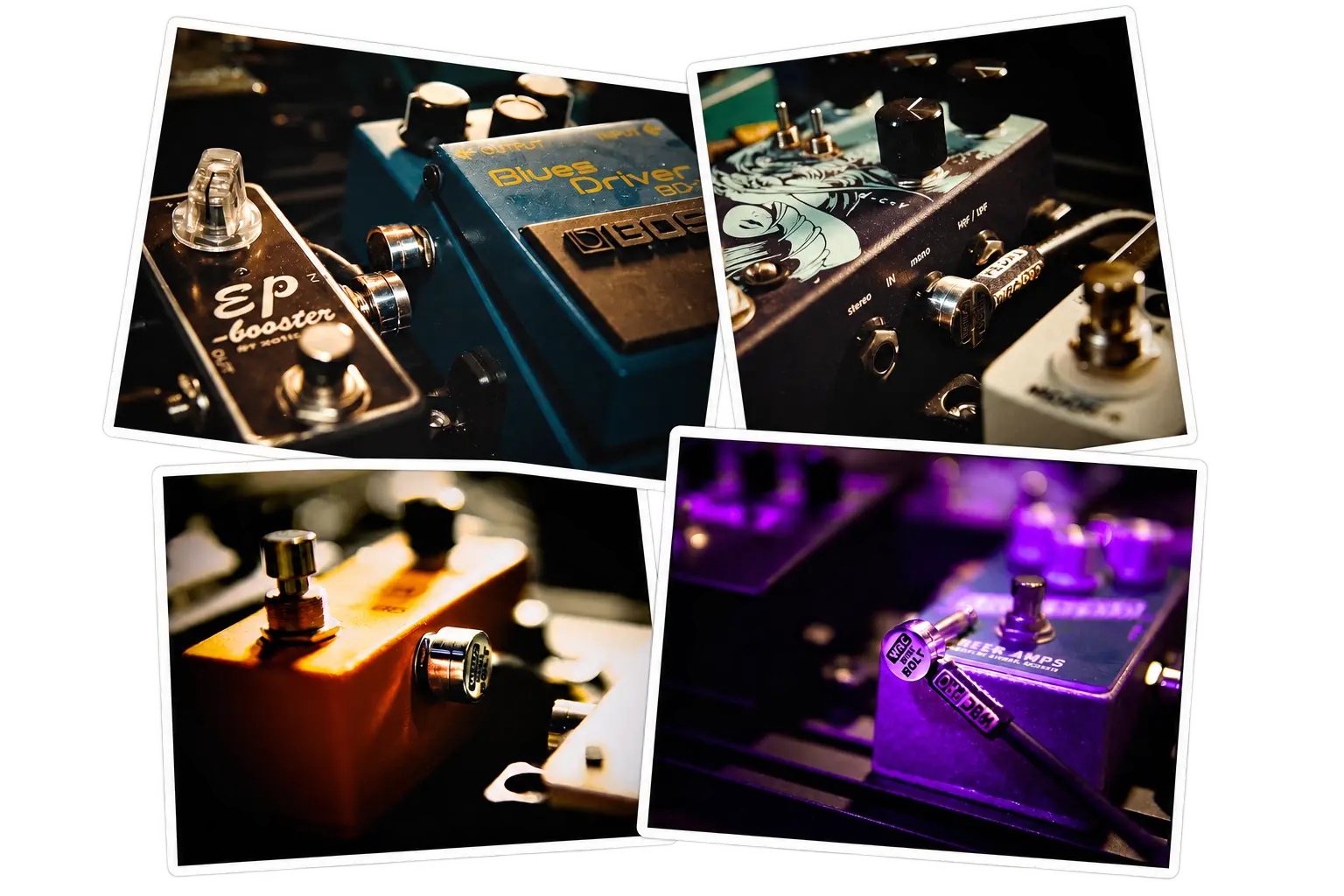

Compact WBC MINI BOLT connectors used between closely spaced guitar pedals

WHY WBC?

Engineering First. Assembly Matters Just As Much.

A great bulk cable and a great connector can still become an average finished cable if the termination work is average. WBC assembles its cables professionally with attention to conductor preparation, soldering, strain control, inspection and final finish.

WBC uses its proprietary 4% silver solder blend together with a nitrogen-assisted soldering process. Nitrogen at the soldering stage helps limit oxidation while the joint is formed, supporting clean wetting and repeatable termination quality.

The cable, connector and assembly process are treated as one system. That is the point of WBC-PRO.

Designed In-HouseWBC-PRO-PEDAL cable and MINI BOLT developed around the finished application.

Professionally AssembledControlled termination rather than commodity mass assembly.

4% Silver Solder BlendWBC’s proprietary solder formulation for its cable assemblies.

Nitrogen-Assisted SolderingUsed to limit oxidation during solder-joint formation.

Professional components. In-house engineering. Expert assembly. Without the “pro cable” price penalty.

THE WBC DIFFERENCE

Performance Where It Matters. Value Where It Counts.

WBC-PRO was created around a straightforward philosophy: spend the engineering effort on measurable cable behavior, durable connector construction and consistent assembly—then sell the finished cable at a price musicians can actually use across an entire rig.

We are not asking you to buy a cable because of mystique. We want the design, materials, construction and price to make the case.

Our promise is the same one behind the Worlds Best Cables name: extraordinary choice, professional components, expert assembly and exceptional value.

Nickel-plated WBC MINI BOLT connectors on WBC-PRO-PEDAL cable

ORDERING YOUR PEDALBOARD

Choose Every Length You Need In One Go.

Use the WBC length matrix above to add all required cable lengths and quantities before moving to your cart. Each row represents the same WBC-PRO-PEDAL / nickel-plated MINI BOLT construction in a different finished length.

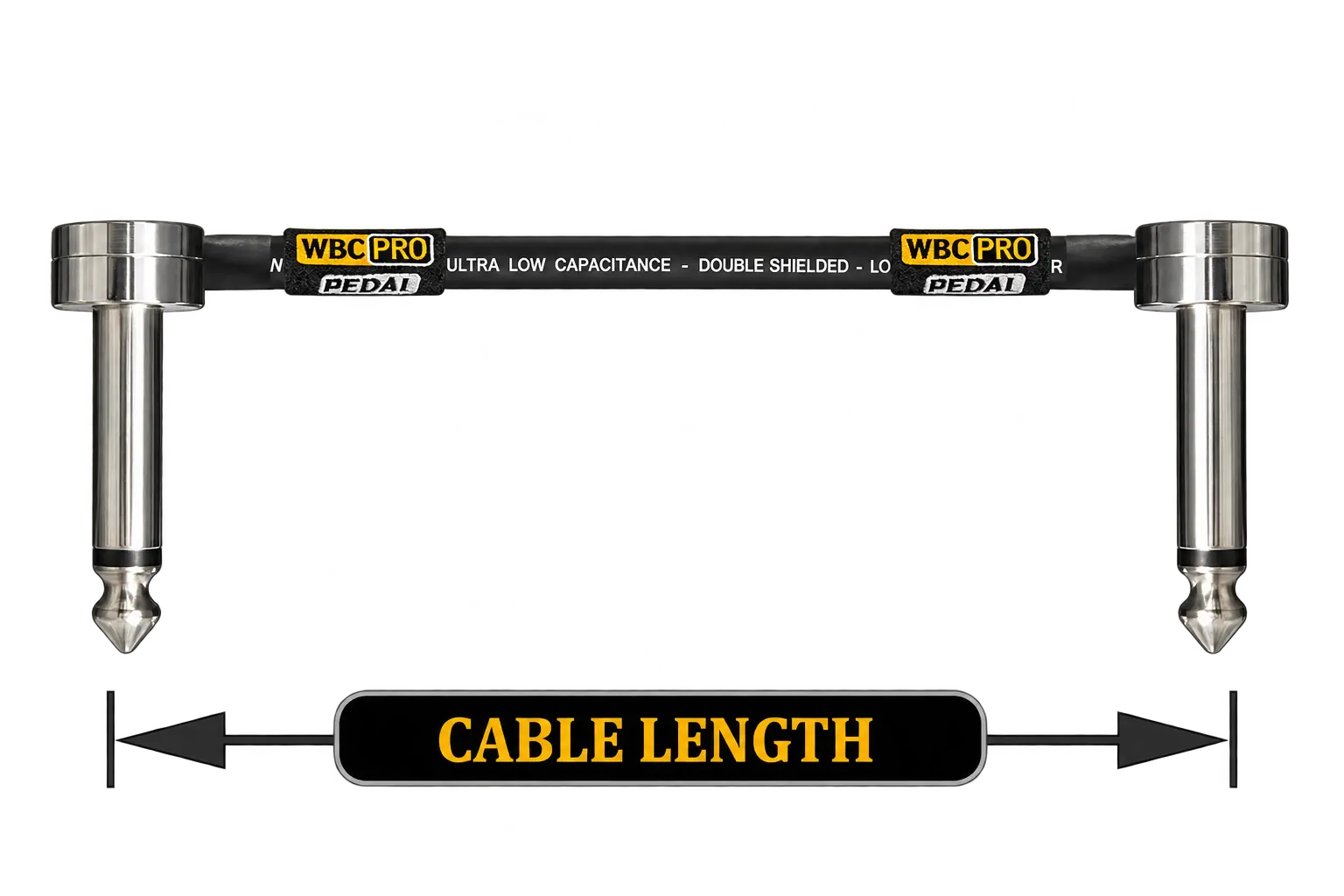

Cable length is measured tip-to-tip, from the tip of one connector to the tip of the other. Use that measurement when planning the distance between pedal jacks.

Back To The Length Matrix ↑

Need a non-standard length?
WBC builds custom cable assemblies for systems that do not fit standard dimensions. If your pedalboard needs something unusual, use the Custom Shop rather than compromising the layout.

10YEARS.

WBC REPLACEMENT WARRANTY

Built To Be Used. Backed For The Long Haul.

Pedalboard cables get stepped around, packed, unpacked, flexed and moved. WBC backs its finished cable assemblies with a 10-Year Replacement Warranty because a professional cable should be built for real use.

Read Warranty Details

PRE-SALE QUESTIONS

Quick Answers.

How is WBC-PRO-PEDAL cable length measured?

Finished cable length is measured tip-to-tip, from the tip of one MINI BOLT connector to the tip of the other. Use tip-to-tip distance when planning the spacing between pedal jacks.

Why does 18 pF/ft capacitance matter?

With passive guitar pickups and unbuffered signal paths, cable capacitance interacts with the pickup and controls and can alter the system’s resonant response. Keeping capacitance low reduces the cable’s contribution to that loading. After a good low-impedance buffer or active output, cable capacitance becomes much less influential.

Does lower capacitance automatically mean “better tone”?

Not in every system and not as a matter of taste. Lower capacitance means the cable contributes less capacitive loading. Many players prefer that because it preserves more of the instrument’s original high-frequency response, while others deliberately choose higher-capacitance cables as part of their sound. WBC-PRO-PEDAL is engineered for minimal cable-induced change.

What does the graphite-based conductive layer do?

It forms a conductive layer around the insulated core that helps drain electrostatic charge and control triboelectric noise created when cable layers move against one another. It works together with the dense OFC spiral shield rather than replacing it.

Can MINI BOLT fit closely spaced stereo pedal jacks?

MINI BOLT was specifically designed for very compact jack spacing. Its small body can accommodate layouts where larger pancake-style connectors overlap or collide. As with any hardware, check the physical clearance around unusually recessed or obstructed jacks.

Can MINI BOLT replace a straight TS plug?

In many installations, yes. Its very small right-angle head can fit into spaces where a conventional right-angle connector would be too bulky and where players would otherwise resort to a straight plug. Actual fit depends on the equipment’s jack location and surrounding hardware.

Is WBC-PRO-PEDAL suitable for stage and studio use?

Yes. The cable was designed around professional pedal, instrument and effects applications, with a 22 AWG fine-stranded OFC conductor, dense spiral shielding, a conductive graphite-based layer and a flexible outer jacket.

Can I order an exact custom length?

Yes. If the standard lengths do not fit your board or rack layout, use the WBC Custom Shop to request a purpose-built length or configuration.

Where can I see the complete WBC-PRO-PEDAL wire specification?

Use the dedicated WBC-PRO-PEDAL Wire Specifications tab on this product page. The editorial description intentionally focuses on application, engineering and purchasing rather than repeating the full specification table.

What does the 10-Year Replacement Warranty cover?

The finished cable is backed by WBC’s 10-Year Replacement Warranty. Refer to the current WBC warranty page for coverage details, eligibility and applicable terms.

WBC CUSTOM SHOP

Need A Different Length, Cable Or Connector?

WBC builds connectivity around the system—not the other way around. Choose your cable, connector, length and configuration.

Build A Custom Cable →

WBC-PRO-PEDAL + WBC MINI BOLT

A Pedal Cable Engineered As A Complete System.

Ultra-low capacitance cable. Dual-layer noise control. A compact, precision-machined nickel-plated MINI BOLT connector. One purpose: preserve the signal while taking up less of your pedalboard.

Cable + connector engineered in-house
Choose Your Lengths ↑

10Year WarrantyLong-term replacement coverage from WBC.

WBuilt By WBCProfessionally assembled with controlled termination processes.

✓Engineered In-HouseCable and connector designed to work as a system.

↗Worldwide ShippingDirect from Worlds Best Cables.

A patch cable may be short. A pedalboard may use a lot of them. That is exactly why cable design still matters.

WHY CAPACITANCE MATTERS

Keep More Of The Signal You Started With.

A passive guitar pickup is a relatively high-impedance source. Cable capacitance becomes part of that electrical system, interacting with the pickup and controls and influencing the instrument's resonant response. As total capacitance rises, the audible result can be a greater change in high-frequency presence and response.

The goal is not to “add tone.” It is the opposite: change as little as practical.

18pF/ft capacitance

22AWG conductor

98%Spiral shield coverage

99.99%OFC conductor / shield

WBC-PRO-PEDAL

Dual Shielding. Without The Bulk.

Ultra-Flexible JacketRoutes easily between tightly packed pedals and survives repeated setup, teardown and repositioning.

98% OFC Spiral ShieldDense copper coverage helps reject unwanted interference while preserving flexibility.

Graphite Conductive LayerA conductive PVC layer formulated with high-purity natural-vein graphite helps drain electrostatic charge and reduce triboelectric handling noise.

65-Strand 22 AWG CoreFine-stranded 99.99% OFC construction combines a substantial conductor with the flexibility needed on a pedalboard.

WBC MINI BOLT — NICKEL-PLATED

Small Connector. Serious Engineering.

MINI BOLT was developed around a simple idea: a pedal connector should occupy as little valuable board space as possible without turning the plug itself into the weak link.

The nickel-plated MINI BOLT is CNC-machined and hand-finished for a compact, durable connector intended for years of real use.

PEDALBOARD REAL ESTATE

More Room For Pedals. Less Room Wasted On Plugs.

That compact geometry can reduce the gap required between pedals and can also make the connector practical in locations where a conventional right-angle plug is simply too bulky.

WHY MINI BOLT?

See Where The Space Went.

MINI BOLT is not merely a smaller shell around a conventional pedal plug. Its internal construction was rethought around size, mechanical durability and an all-brass electrical path.

VERSATILITY IS THE POINT

Right-Angle Routing. Straight-Plug Territory.

MINI BOLT's extremely small head allows it to work in many tight jack layouts where larger right-angle plugs interfere with neighboring connectors or surrounding hardware.

The result is a connector that can solve layouts normally associated with straight plugs while still routing the cable away from the jack at a pedalboard-friendly angle.

CLOSELY SPACED JACKS

Stereo Pedals Shouldn't Force A Connector Compromise.

Closely positioned input and output sockets are common on compact and stereo pedals. MINI BOLT's small footprint is designed to let adjacent plugs coexist without the bulky overlap associated with many conventional pancake-style connectors.

Choose Your Lengths ↑

WHY WBC?

Engineering First. Assembly Matters Just As Much.

The cable, connector and assembly process are treated as one system. That is the point of WBC-PRO.

Designed In-HouseWBC-PRO-PEDAL cable and MINI BOLT developed around the finished application.

Professionally AssembledControlled termination rather than commodity mass assembly.

4% Silver Solder BlendWBC's proprietary solder formulation for its cable assemblies.

Nitrogen-Assisted SolderingUsed to limit oxidation during solder-joint formation.

Professional components. In-house engineering. Expert assembly. Without the “pro cable” price penalty.

THE WBC DIFFERENCE

Performance Where It Matters. Value Where It Counts.

We are not asking you to buy a cable because of mystique. We want the design, materials, construction and price to make the case.

Our promise is the same one behind the Worlds Best Cables name: extraordinary choice, professional components, expert assembly and exceptional value.

ORDERING YOUR PEDALBOARD

Choose Every Length You Need In One Go.

Cable length is measured tip-to-tip, from the tip of one connector to the tip of the other. Use that measurement when planning the distance between pedal jacks.

Back To The Length Matrix ↑

10YEARS.

WBC REPLACEMENT WARRANTY

Built To Be Used. Backed For The Long Haul.

Read Warranty Details

PRE-SALE QUESTIONS

Quick Answers.

How is WBC-PRO-PEDAL cable length measured?

Finished cable length is measured tip-to-tip, from the tip of one MINI BOLT connector to the tip of the other. Use tip-to-tip distance when planning the spacing between pedal jacks.

Why does 18 pF/ft capacitance matter?

With passive guitar pickups and unbuffered signal paths, cable capacitance interacts with the pickup and controls and can alter the system's resonant response. Keeping capacitance low reduces the cable's contribution to that loading. After a good low-impedance buffer or active output, cable capacitance becomes much less influential.

Does lower capacitance automatically mean “better tone”?

Not in every system and not as a matter of taste. Lower capacitance means the cable contributes less capacitive loading. Many players prefer that because it preserves more of the instrument's original high-frequency response, while others deliberately choose higher-capacitance cables as part of their sound. WBC-PRO-PEDAL is engineered for minimal cable-induced change.

What does the graphite-based conductive layer do?

Can MINI BOLT fit closely spaced stereo pedal jacks?

Can MINI BOLT replace a straight TS plug?

Is WBC-PRO-PEDAL suitable for stage and studio use?

Can I order an exact custom length?

Yes. If the standard lengths do not fit your board or rack layout, use the WBC Custom Shop to request a purpose-built length or configuration.

Where can I see the complete WBC-PRO-PEDAL wire specification?

What does the 10-Year Replacement Warranty cover?

The finished cable is backed by WBC's 10-Year Replacement Warranty. Refer to the current WBC warranty page for coverage details, eligibility and applicable terms.

WBC CUSTOM SHOP

Need A Different Length, Cable Or Connector?

WBC builds connectivity around the system—not the other way around. Choose your cable, connector, length and configuration.

Build A Custom Cable →

Weight	N/A
Length	4 inch, 5 inch, 6 inch, 8 inch, 10 inch, 12 inch, 15 inch, 18 inch, 24 inch, 30 inch, 3 foot, 4 foot, 5 foot, 6 foot, 8 foot, 10 foot
Plug Orientation	Angle Mini-Bolt to angle Mini-Bolt U cable – For connecting two standard side-jack pedals that sit perfectly side-by-side on your board., Straight Mini-Bolt to Straight Mini-Bolt cable – For connecting two standard side-jack pedals that sit perfectly side-byFor -side on your board. This allows the cable to form a clean, natural loop without twisting the wire., Angle Mini-Bolt to Angle Mini-Bolt Z cable – For connecting a side-jack pedal to a top-jack pedal, or connecting two pedals where the audio signal has to route in a specific zigzag pattern., Angle Mini-Bolt to Straight Mini Bolt cable – For Niche routing setups, such as connecting a side-jack pedal directly to a switcher loop input that faces a completely different direction.
